What Gauge Wire Size For a 30 AMP (220V, 240V) Circuit?

Last updated: Jan 5, 2023
What Wire Size For 30 AMP

Determining 30 AMP wire size brings a lot of confusion and options for people to adapt their homes’ electricity. Everyone should consider two basic principles: selecting the correct wire size and ordering AMP service through reliable electronic stores or websites. This can eliminate the risks of catching detective products during use.

What Wire Size For 30 AMP?

There are various size wires ranging from 30 AMP breaker size up to 30 AMP circuit size on the market. People can also differentiate products depending level of gauge, comprising:

10 – Gauge Wire

The 10-Gauge wire is one of the most recommended sizes for the 30 AMP product lines.  This wire has gained popularity in wire thickness, often used for extension cords, speakers, home wirings, and some other electric systems operated under handling. People tend to choose 10-gauge wire for 10 AMP, 20 AMP, and especially 30 AMP to promote the largest amount of loads of electron cycles for their devices, helping save more electricity expenses.

8 – Gauge Wire

Many professional technicians prefer an 8-Gauge wire because it is the maximum wire of 30 AMP. Nevertheless, there is no rule in choosing sizes for electrical wires, mainly based on customers’ demand regarding time-saving, amperage capacities, or safety risks. Some other thicker wire kinds can be highly evaluated on the market, such as 12-Gauge wire, 14-Gauge wire, and 6-Gauge wire.

Everyone should look at the 30 AMP wire gauge chart to find detailed information for types of wires, current load, and wire diameter belonging to American wire gauge standards. This allows the users to buy reasonable products at the best prices.

What Happens If I Used The Wrong Length And Wire Size For 30 AMP Circuit?

Electric devices can be stuck in a lot of severe property damage for using less than the minimum size, including

  • When overloads happen in the branch circuit, the circuit breaker can malfunction to detect the overloads, resulting in wire damage or hot wire.
  • The damaged wire due to overloading may cause a fire, bringing risks to damage to the users’ property if they do not tackle it immediately.

People can choose to utilize a thicker wire size to restrict the impacts on the circuits. The circuit breaker has the ability to detect short circuits, overloads, and other electrical issues more appropriately through owning a larger size. This option also allows people to easily expand the electronic network in the future, cutting down the repairing time and lengthening the usage cycle of products.

Regarding the 8-gauge wire for 30 AMP, the basic price is higher than the average price level of the other lines and tends to increase around 20% from the regular price after each period.  Therefore, people must carefully search for relevant information about 8-gauge wire, both benefits and drawbacks of the product.

How Many AMPs Can A 30-AMP Breaker Handle?

According to the AWS and safety standards, a 10-gauge wire is the minimum requirement of a 30-AMP circuit breaker for each operation phase in the process. People always have to use a lower gauge wire, not a larger one than 10 gauge, which helps ensure not to pose a significant fire and safety risk.

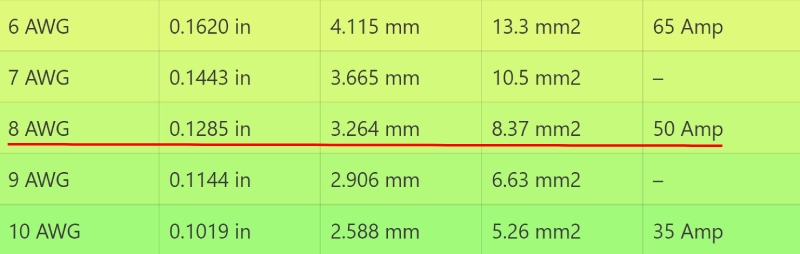

The table illustrates AWG wire to adapt the electric devices

If some home holders try to use thinner wire gauges instead of thicker wire gauges to save costs, there will be significant impacts on the efficiency of devices in the long run. They should also care about how much the AMP rating of the breaker can increase to choose the best products.

Kinds Of NEC Codes For 30 AMP Breaker Wire Size

Selecting the correct wire gauge comes from considering minimum, maximum, maximum, copper, or ground wire and understanding NEC codes on products. Below is some information about this field.

Definition Of NEC Code

The NEC provides guidelines for electrical installation to prevent electric water heaters, electric fires, and other electrical accidents. The professional electrician needs to be aware of NEC to ensure the safety, legality, and electric codes put in the right position based on the technical information. There are two common codes for the physical size of the 30 AMP breaker wire size on the market.

NEC 220-2 Code

NEC 220-2 Code requires the adaptation of a conduit wire’s maximum load of about 30 AMPS, accounting for 80% of the ampacity of that wire. The material for NEC 220-2 code is good enough to smoothly promote the process of running electrical circuits and attain the highest effectiveness.

NEC 310-16 Code

NEC 310-16 code shows the right 30 AMP size wire service at a proper distance. The users normally add 20% to the circuit for ampacity every 100 feet away from the sub-panel to take advantage of the wire’s functions and maintain human safety at the maximum.

The data relating to NEC 310-16

Which Information Is Considered When Installing 30 AMP Circuit Breaker?

The customers also consider the wire length and AWG when installing the 30 AMP circuit breaker. In particular:

  • The maximum length for any lighting circuit using a 10-gauge wire size is 150 feet
  • It is worth applying an 8-gauge wire size if it has exceeded the maximum length of a 10-gauge wire to keep up with the current demand of the devices running.
  • The other requirement is the 80 percent rule for the circuit breakers for each device’s present loads. The circuit can be at risk of overloading when a load above 80% of the breaker’s AMP rating occurs.

FAQs

How Far Can The 10-Gauge Wire Run On A 30 AMP Circuit?

Amperage and wire gauges are essential parts of electrical wiring, especially in DIY projects. The wire gauge is used to help the users to detect the maximum current carrying capacity of the equipment. For instance, a 10-gauge wire can handle 30 AMPS at the level of 60 Celcius.

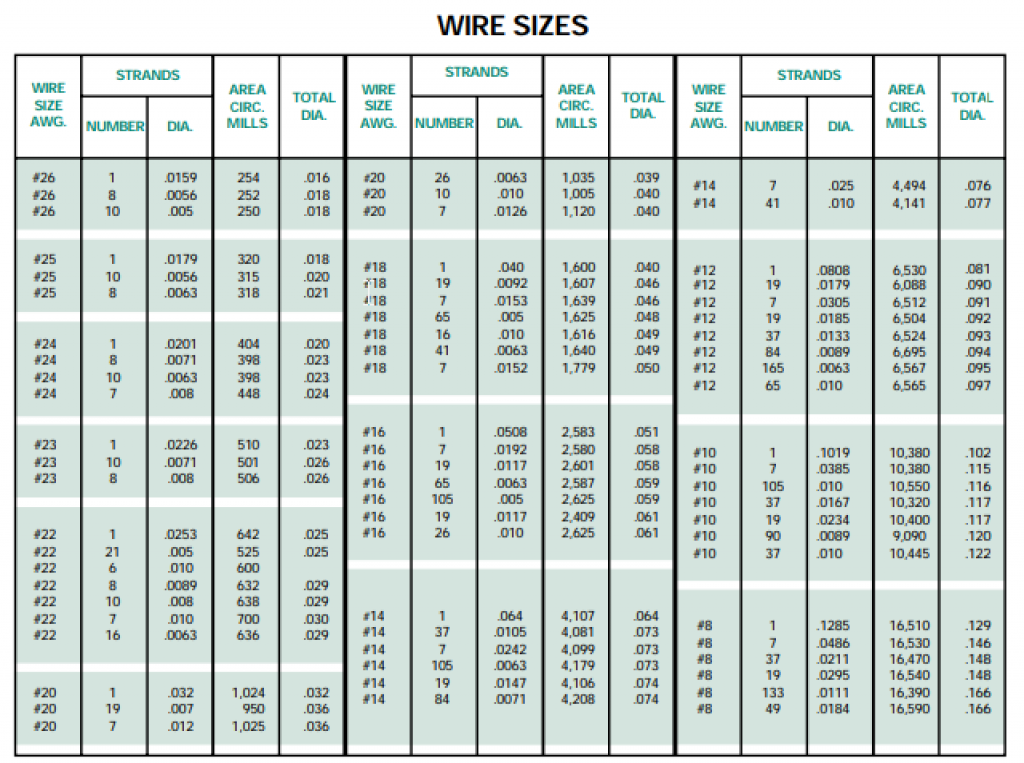

The data table for choosing what wire size for 30 AMP

How Many 15 AMP Outlets Can I Put On A 30 AMP Breaker?

There are up to 16 outlets on a 30-AMP circuit for the users to choose from. The 30 AMP outlet AWG wire size chart below helps buyers clarify when putting 24, 16, 12, 8, 6,  4, 3, 2 and one outlet on a 30A circuit.

The 30 AMP outlets listed in the AWG wire size chart

Can You Run 220 On A 30 AMP Breaker?

Definitely yes. The users can get 220 volts 30 AMP, 110/120 volts 30 AMP, and even apply wire size for 30 AMP 240-volt circuit for this situation.

Conclusion

This article answers the topics relating to wire size for 30 AMP. The buyers can follow some instructions listed above to choose the best products matching the technical information of the devices. This can help to maintain the usage time for the electrical network at home or any internal place.
