Square D Circuit Breaker Types – Should We Use It?

Last updated: Jan 5, 2023
Square D Circuit Breaker Types

Square D, an American company, is well-known for its reliability in domestic and industrial settings. On the other hand, familiarity with the numerous types of Square D circuit breakers will offer you an in-depth understanding of regular trip circuit breakers and their wide variety of uses.

It is highly recommended that you read this complete article to get further knowledge on these many classifications and know why you should use them for your house’s electrical system.

Square D Circuit Breaker Types

Different kinds of standard trip circuit breakers are electrical products manufactured by the Square D business, whose parent company is Schneider Electric (an American Company). It is the most successful electrical products producer in the United States. This range of circuit breakers was developed to fulfill a comprehensive largest selection of needs within the electrical sector.

A wide range of performance capabilities and individual characteristics may be found in circuit breakers. List of products of the standard trip circuit breakers manufactured by Square D:

  • Square D Homeline Breakers
  • Square D QO breakers
  • Square D QOB Breakers

Each of Square D’s circuit breakers is furnished with an AFCI (Arc Fault Circuit Interrupter), a GFCI (Ground Fault Circuit Interrupter), and a combined Arc-Fault Circuit Interrupter, also known as the CAFI breaker.

Square D Homeline Breakers

Homeline breakers are often seen in homes where the electrical load is modest. Thanks to this device’s basic circuit breaker function, your family and all of your electrical appliances are safe from harm. Unfortunately, you can only get it with a single-phase electric power source.

A 15- or 20-ampere circuit breaker is often used for 120-volt household lights. Most low-power household appliances can be run off of a single Homeline 2-pole circuit breaker.

Additionally, the Homeline breakers from Square D are the most reasonably priced option. Homeline single-pole circuit breakers are the most affordable option from Square D, with prices starting at only $5.

Square D QO Breakers

Squared D also makes the QO breaker, sometimes known as a plug-on neutral breaker. It’s superior to a Homeline circuit breaker because of its sophisticated quick-release features. That is to say, QO circuit breakers are superior in their capacity to safeguard electrical systems.

In most cases, QO circuit breakers will be found in a business setting. Circuit breakers with one, two, or three poles may all be equipped with a QO option. The circuit breakers here are suitable for use with high-wattage equipment.

You may take advantage of the limited lifetime guarantee if it stops working. A Homeline circuit breaker is less expensive. Its premium quality and innovative features cost twice as much as comparable Homeline breakers. Homeline breakers and QO circuit breakers are incompatible with one another.

In addition, the QO breakers are backward-compatible with the NQOD and NQO panels that were previously in use. It is also compatible with the latest generation of NQ panelboards and QOB breaker panels.

Square D QOB Breakers

Square D also makes QOB circuit breakers, sometimes known as bolt on circuit breakers.

There is no difference in functionality from standard QO breakers. However, the installation process is different. If you don’t want these breakers to fall out of the wall during installation, you’ll need to screw them in.

Although a regular QO breaker may be used with QOB circuit ones, QOB breakers cannot be used with QO panelboards because of the bolt-on design of the former. Therefore, old-style square D breaker panels (NQ, NQOB, and NQOD) are the only ones that work with QOB circuit breakers.

You may learn more about Square D appliances by using Schneider Electric’s catalog. It has a lot of data, including QO and Homeline breakers, efficient utilization, and enclosures.

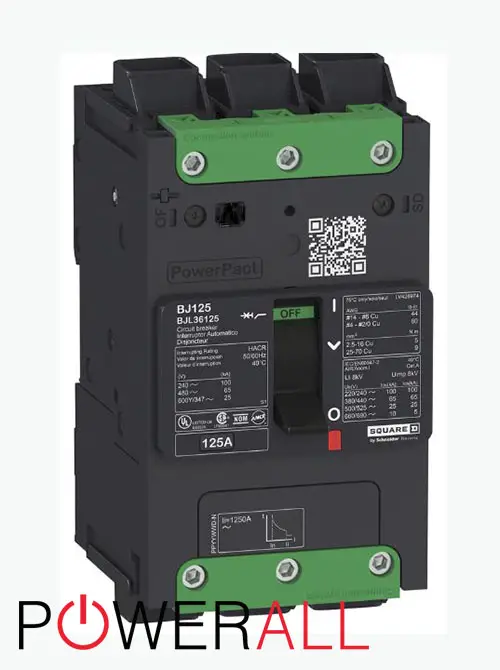

Why Should I Use Square D Breakers?

Why Should I Use Square D Breakers

You can ensure the safety of your family and belongings, so it is essential to install high-quality electric circuit breakers in your home’s conventional trip circuit.

Square D is a suitable choice if there is a need to either install a standard trip circuit or update an existing one. However, even if there are a great number of reasons to go with Square D Schneider, the following are the top three factors that the majority of customers take into consideration.

Excellent Reputation

Its dedication to safety is a major selling point for Square D.

More than 18 years ago, Schneider Electric began providing electrical services. The firm has made a name for itself by producing various circuits for use in things like tower lighting, control rooms, and HVAC systems.

This brand’s name is synonymous with reliability and security. Arc fault prevention and ground fault detection are among the many available safeguards for its products.

All national and international safety regulations are met or exceeded by their goods. They also have professionals to answer queries and guide you toward the best product.

Provides A Comprehensive Selection Of Various Circuit Breakers

The circuit breakers and safety switches manufactured by Square D may be utilized for various purposes. Every building type requires a different circuit breaker, from homes to offices to factories.

If you can’t afford Square D’s premium items, they provide cheaper alternatives like circuit breakers. Since Square D products are more cost-effective than competing brands, they are the first choice of electricians, contractors, and homeowners.

Installation and maintenance issues may be handled by their extensive network of distributors and service personnel.

Access to Outdated Circuit Breakers

When it comes time to replace your old circuit breakers, Square D models are a fantastic option. However, whenever your circuit seems too old and the makers are no longer in business, finding a suitable alternative for an old or outdated breaker might be challenging.

Fortunately, Square D has various older breaker types in-store and offers repairs on older breakers. Old circuit breakers are purchased, inspected, reconditioned, and resold after testing and resale.

Their limited guarantee on the reconditioned device means you may buy it with confidence.

FAQs

The following are some responses to frequently asked issues about Square D Circuit Breaker:

Are Square D circuit breakers good?

Yes, of course.

Square D is a high-quality brand that produces safe and dependable popular items, including breakers and electrical panel boards for home use. They are very dependable and made of high-quality materials.

Besides, Square D provides excellent customer service. As a result, a Square D circuit breaker and panel boards are highly popular today and have received positive feedback.

What Is Brand Breaker Compatible With Square D?

In brief, the standard trip circuit breakers compatible with Square D are made by Siemens, Cutler Hammer, Eaton, GE Breaker, Murray, Westinghouse, and Home Fitline.

Are All Square D Breakers The Same?

Square D’s Homeline and QO breakers protect your electrical systems in different ways, can handle various amounts of amps, and need different amounts of gutter space in the breaker box. In addition, these breakers are used for overcurrent protection and people protection.

Homeline circuit breakers are made to the same high standards as Square D breakers, but they cost less. This makes them the best deal in their class. In addition, visi-Trip is a unique visual trip indicator built into all QO circuit breakers.

Conclusion

Suppose you are familiar with the Square D circuit breaker types, including the Homeline, QO, and QOB breakers. In that case, you will have a better idea of which type of electrical circuit breaker will best meet the requirements of your electrical system.

You can also identify the advantages of the Square D circuit by considering why it is one of the greatest options for various circuit breakers. Again, square D is one of the best selections.
